Solar Switchboard Upgrade for Battery and Ducted Air Con in Chelmer

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade that accommodates a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade was necessary.

Choosing Precision Electrical & Air for Your Switchboard Upgrade

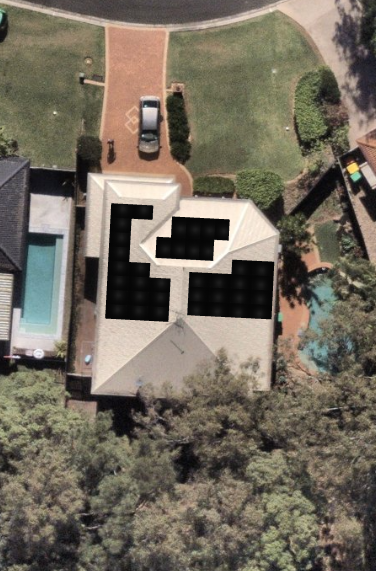

This homeowner in Chelmer undertook a comprehensive renovation project that encompassed the installation of a robust 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and complete blackout protection for the entire residence. In addition, a new ducted air conditioning system was integrated into the overall design. Before connecting these advanced electrical systems, it was essential to evaluate and enhance the existing switchboard to ensure compliance with the latest safety standards and effectively manage the increased electrical loads introduced by these installations.

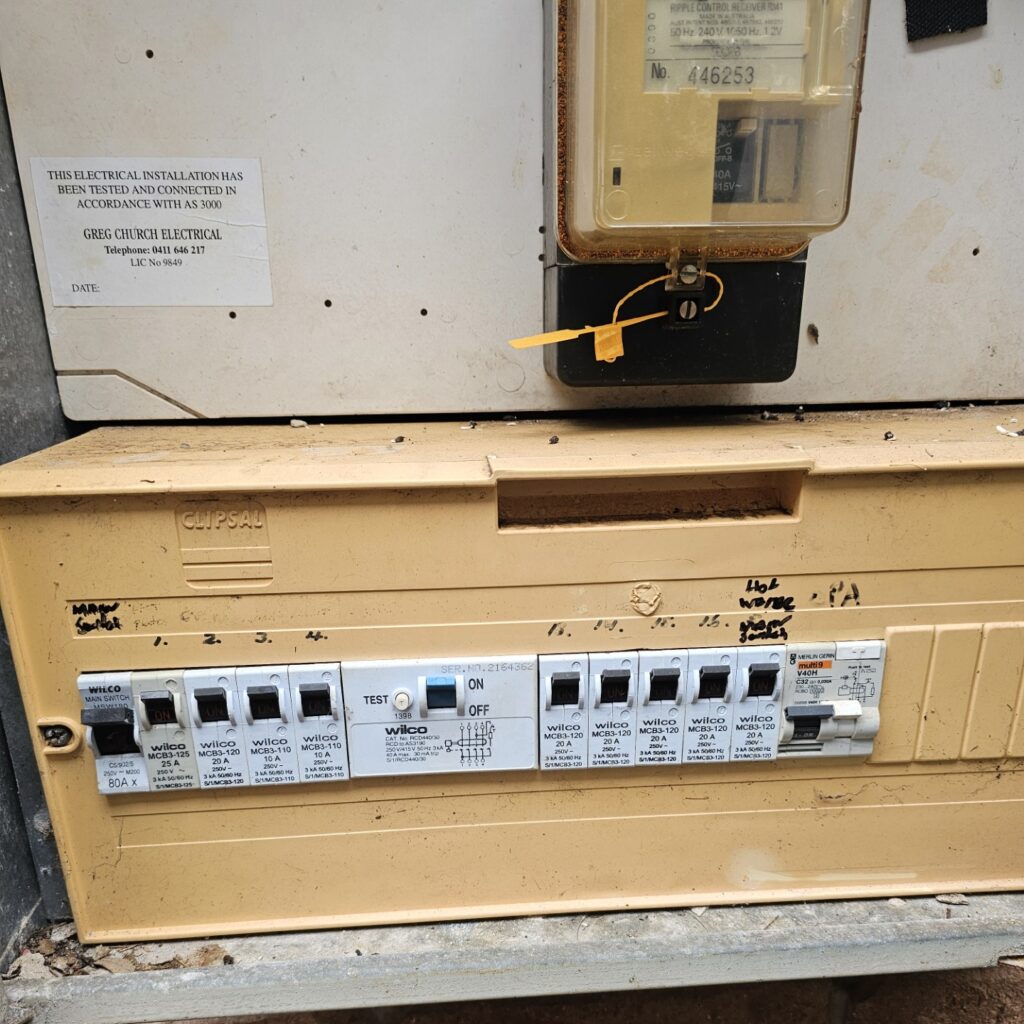

The original switchboard was outdated, featuring obsolete circuit breakers, along with a single Residual Current Device (RCD) that provided protection for the entire property. This setup was inadequate for supporting solar energy integration and battery storage. Additionally, the circuit labelling was insufficient, rendering it non-compliant with contemporary standards that govern modern energy generation systems. This lack of compliance posed a significant risk to the operational efficiency of the newly upgraded systems.

Is a Three-Phase Upgrade Truly Necessary for Your Electrical System?

When assessing the specifications of a 17.86kW solar system coupled with a 30kWh battery, it is a common misconception that a three-phase upgrade is obligatory. This misunderstanding can have significant financial repercussions for homeowners, potentially resulting in costs ranging from £3,500 to £6,000, as well as a lengthy approval process from Energex for necessary network modifications.

Thorough Initial Technical Assessment Undertaken

Two critical factors played a pivotal role in determining whether a three-phase upgrade was genuinely necessary. Firstly, the supply cable for the residence was strategically located near the street junction. This advantageous positioning allowed the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, since the solar and battery systems are designed specifically to reduce demand on the grid rather than increase it, there was no technical justification from the network's perspective for the requirement of a three-phase upgrade. Additionally, the ducted air conditioning system was found to comply with the essential parameters required for efficient single-phase operation.

As a result, the decision was made to retain the single-phase configuration. The switchboard underwent a comprehensive upgrade to ensure it could safely and competently manage all new electrical loads without compromising safety or compliance with regulatory standards.

Comprehensive Review of Installed Components for Enhanced Safety and Regulatory Compliance

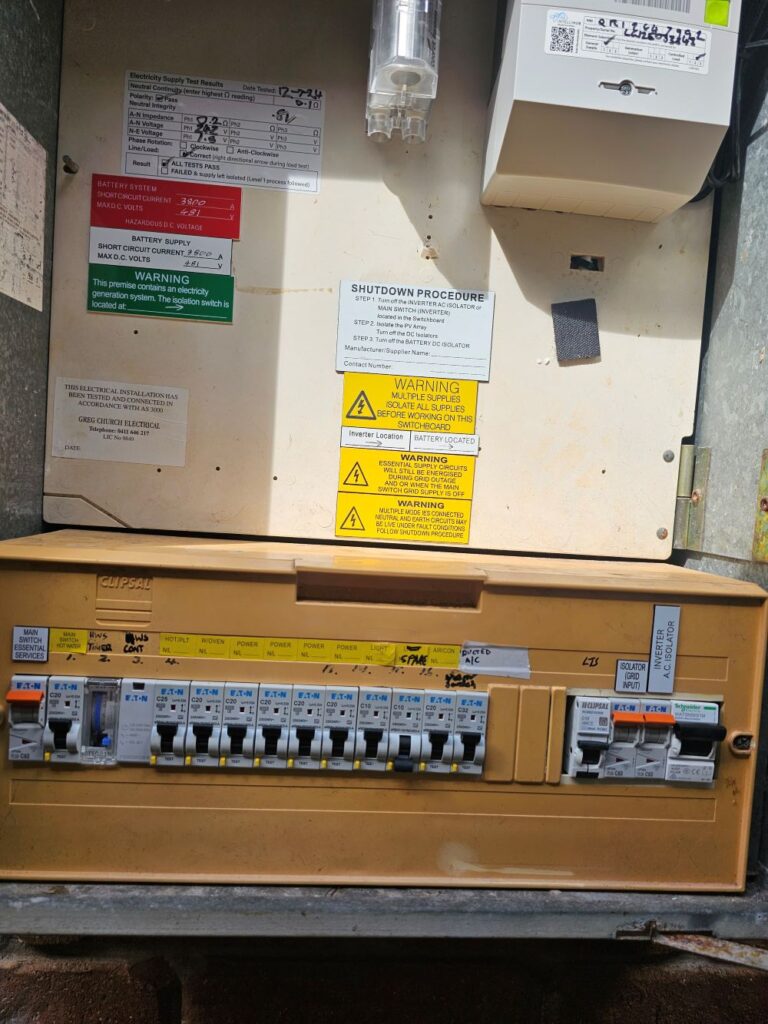

The existing switchboard underwent a full dismantling and thorough reconfiguration process. Every circuit breaker was replaced with new, appropriately rated units from Eaton, with each breaker meticulously labelled for straightforward identification. The circuits were carefully segregated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning were each allocated dedicated circuits to enhance safety and ensure compliance with current regulations.

A timer was integrated into the hot water service to guarantee its efficient operation during peak solar generation hours. This strategic addition significantly reduces reliance on the grid by optimising the use of the solar system's output throughout the day. Furthermore, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure optimal functionality and energy efficiency.

The upgraded switchboard was designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, in addition to multiple supply warnings and a complete shutdown procedure. All electricity supply tests were successfully conducted and documented for the switchboard.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is appropriately set up for any future electrical service work required at the property.

Homeowner Enjoys the Advantages of a Successful Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses associated with a three-phase upgrade that was not essential for their specific circumstances.

Have You Received a Quote for a Three-Phase Upgrade and Are You Unsure of Its Necessity?

While three-phase upgrades can be crucial in specific scenarios, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a thorough analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property.

We assure you that no upselling occurs; you will receive an accurate evaluation tailored to your home.

Your Frequently Asked Questions Addressed

How do electricians determine the necessity of three-phase power for solar systems?

The assessment relies on two primary factors: voltage rise and load demand. Electricians evaluate the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration is sufficient. However, if the voltage rise exceeds this threshold, three-phase power becomes essential to distribute the export load across three conductors, effectively keeping the voltage rise within acceptable parameters.

Does having a larger solar system automatically necessitate three-phase power?

No, the size of the solar system alone does not dictate the requirement for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are added to the property. Key considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, resulting in a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors like Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance stays within this limit to ascertain whether single-phase or three-phase power is suitable for your property.
