Shed Wiring Tips: Key Installation Insights for Experts

If you are the proud owner of a shed on your acreage property and have become frustrated with relying on extension leads from your home, it is crucial to take the necessary steps to have it properly wired. Whether your shed serves as a basic storage shed with just a light and a power point or as a fully equipped workshop where you operate welders and compressors, following a systematic approach is vital. In NSW, the only safe and legal way to accomplish this task is to hire a licensed electrician.

This comprehensive guide will detail the steps involved in supplying power to your shed, including what your electrician will need to install and an estimate of the potential costs that may arise in the Mid North Coast region.

Embarking on Your Shed Wiring Journey: Understanding Cable Runs

The most vital component of any shed wiring project is establishing a reliable power source that connects your main switchboard to your shed. The distance may vary significantly depending on the size of your property, ranging from 30 to over 100 metres. As the length of the cable run increases, the size of the cable must also increase to effectively manage voltage drop, ensuring that your shed receives the necessary power efficiently and reliably.

You primarily have two options for your cable run:

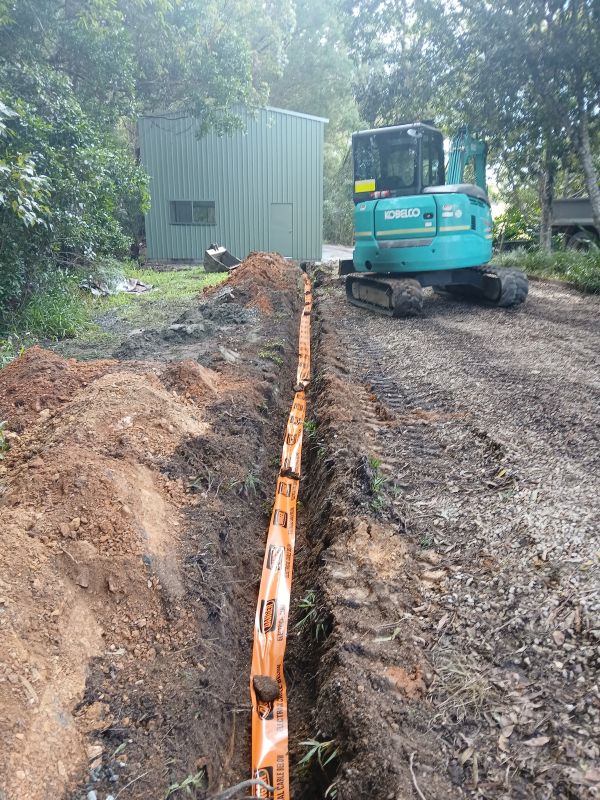

• Underground cable run — This is the preferred method and is the most aesthetically pleasing option. A licensed electrician will install heavy-duty cable through orange conduit, buried at least 500mm deep (or deeper if vehicles are expected to traverse the area). This approach protects the cable from harsh weather conditions, animals, and falling branches, making it ideal for most acreage properties.
• Overhead cable run — Although less common in contemporary installations, this method may be necessary if you encounter solid rock or difficult terrain that complicates trenching. Overhead installations must comply with specific clearance heights and support pole requirements, which can significantly increase overall costs.

For the majority of properties located in Bellingen, Coffs Harbour, and throughout the Mid North Coast, the underground option remains the most suitable choice. Your electrician in Bellingen can evaluate your site and suggest the most effective installation route.

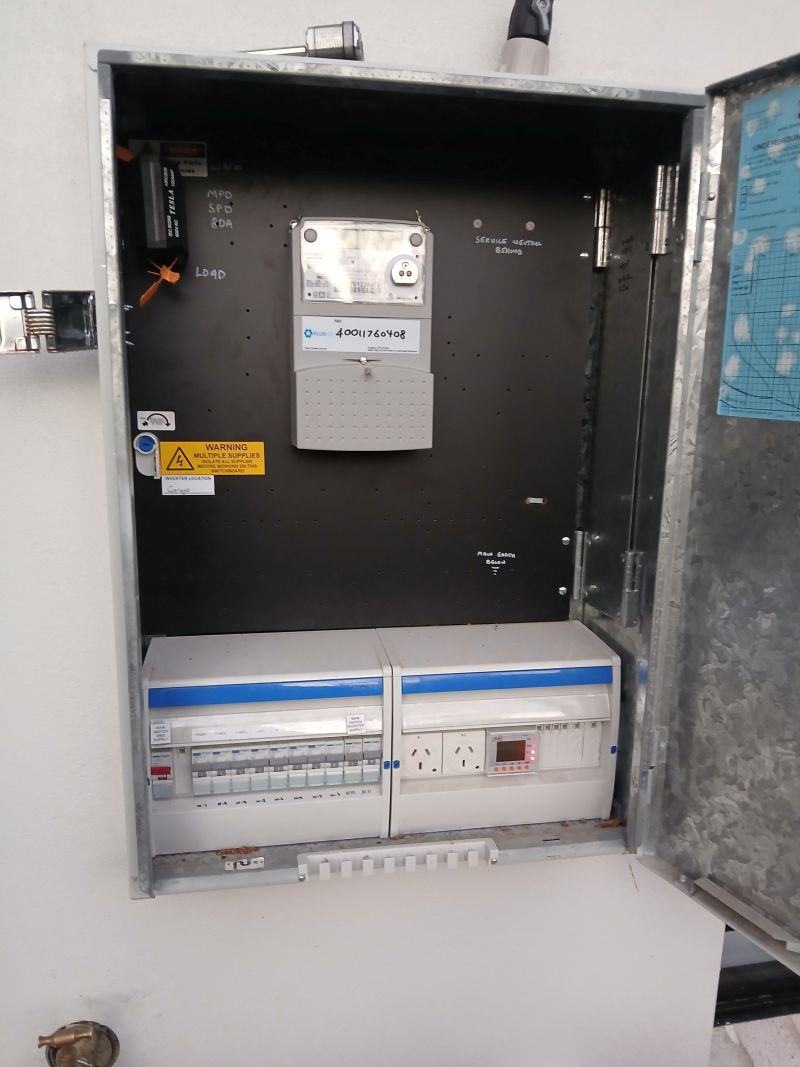

Establishing a Dedicated Sub-Board: Enhancing Power Management for Your Shed

It is insufficient to simply run a single cable to the shed and expect to plug in devices without additional infrastructure. Any shed that receives a proper power supply must be equipped with its own dedicated sub-board, also known as a distribution board. This setup acts as a mini switchboard within the shed, efficiently managing all electrical circuits and ensuring safe operation.

Your sub-board will typically include the following essential components:

• Main switch — This switch allows you to isolate all power to the shed independently from the main house, providing an added layer of safety for all users.
• RCDs (safety switches) — These devices are mandatory under NSW electrical regulations. They instantly cut the power within milliseconds if a fault occurs, which is crucial in a shed environment that is often exposed to moisture, dust, and potential damage.
• Circuit breakers — These provide individual protection for each circuit in your shed, covering lighting, general power, and dedicated tool circuits, ensuring that multiple devices can operate simultaneously without the risk of overloading.

If your home’s main switchboard is outdated, your electrician may recommend upgrading the switchboard to accommodate the additional load directed towards the shed, ensuring that all connections remain safe and efficient.

What Equipment Is Essential for Installation Inside Your Shed?

The specific installations carried out by your electrician within the shed will be tailored to its intended use. Here’s a detailed overview of what these installations typically include.

Optimising a Basic Storage Shed Configuration

For a shed primarily used for storing tools, a ride-on mower, or general equipment, consider the following essential installations:

• LED batten lights — Installing one or two ceiling-mounted LED battens can effectively illuminate the entire space. Your trusted electrician can provide insights on the most suitable lighting layout based on the shed's dimensions and your specific storage needs.
• Two to four general power points — This quantity is adequate for plugging in chargers, radios, or a drop saw whenever necessary. Standard power points and switches will operate on a single circuit, ensuring versatility for various tools.
• External light — An outdoor-rated LED light above the door ensures that you can access the shed safely without fumbling in the dark, improving both safety and convenience.

Configuring a Powered Workshop Shed for Maximum Efficiency

If you frequently utilise power tools such as drop saws, bench grinders, or dust extractors, your wiring requirements will extend beyond basic setups and necessitate meticulous planning:

• Multiple circuits — Establish separate circuits for lighting, general power, and specialised power tool outlets. This configuration prevents lights from flickering whenever you activate a saw, ensuring a stable working environment.
• Higher-rated power points — Install 15-amp or 20-amp outlets to effectively accommodate heavier tools, ensuring you have the necessary power supply for your equipment.

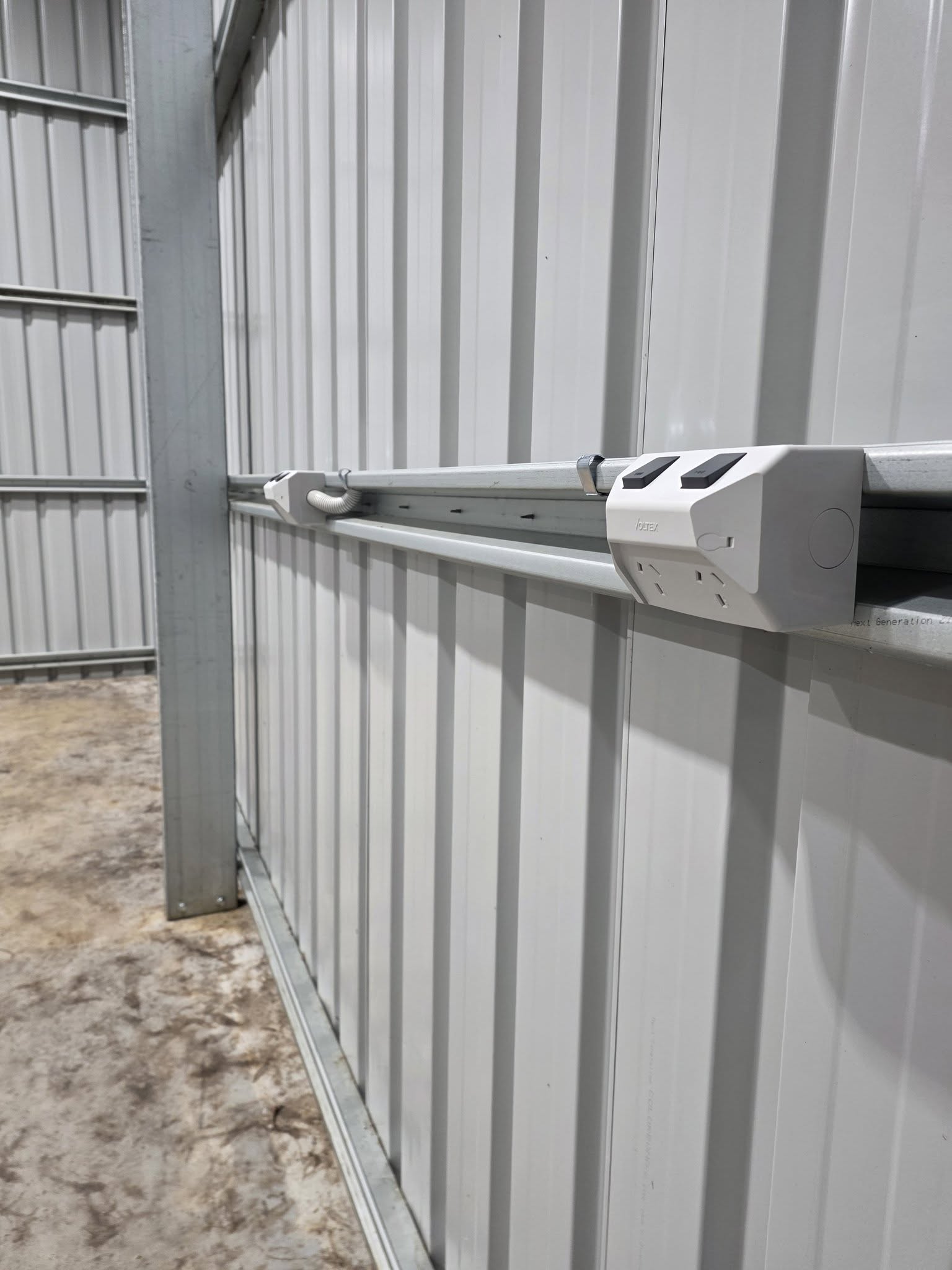

• Increased number of power points with optimal placement — Ensure outlets are positioned at bench height rather than solely at skirting level, facilitating ease of use based on your workbench arrangement.

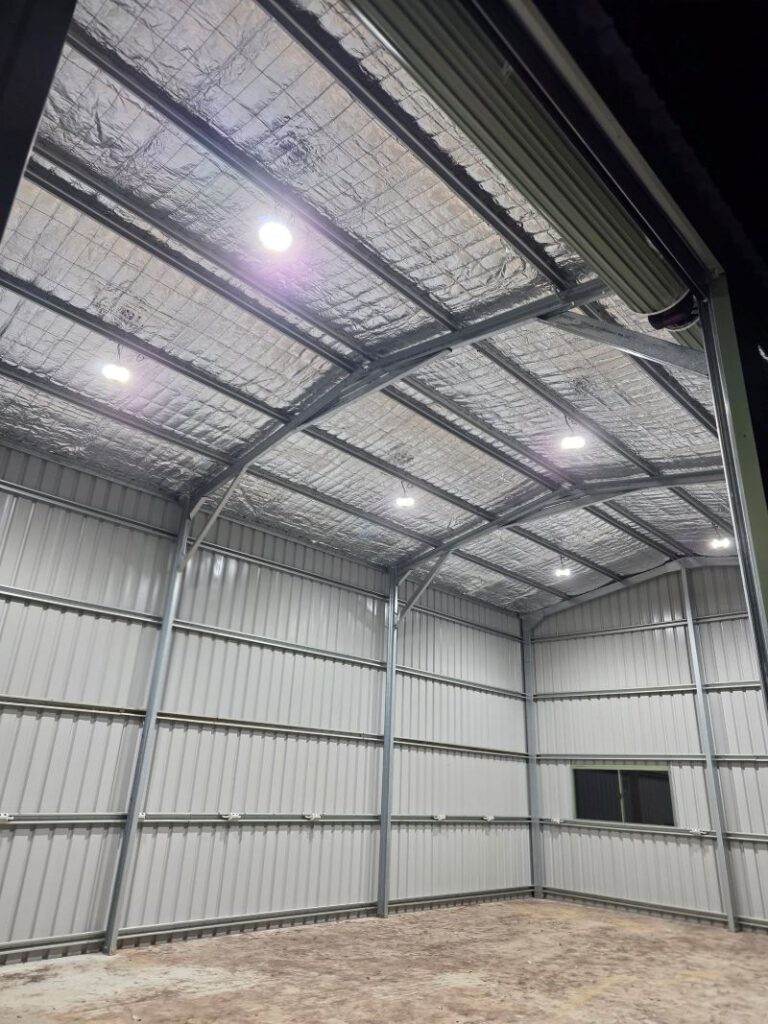

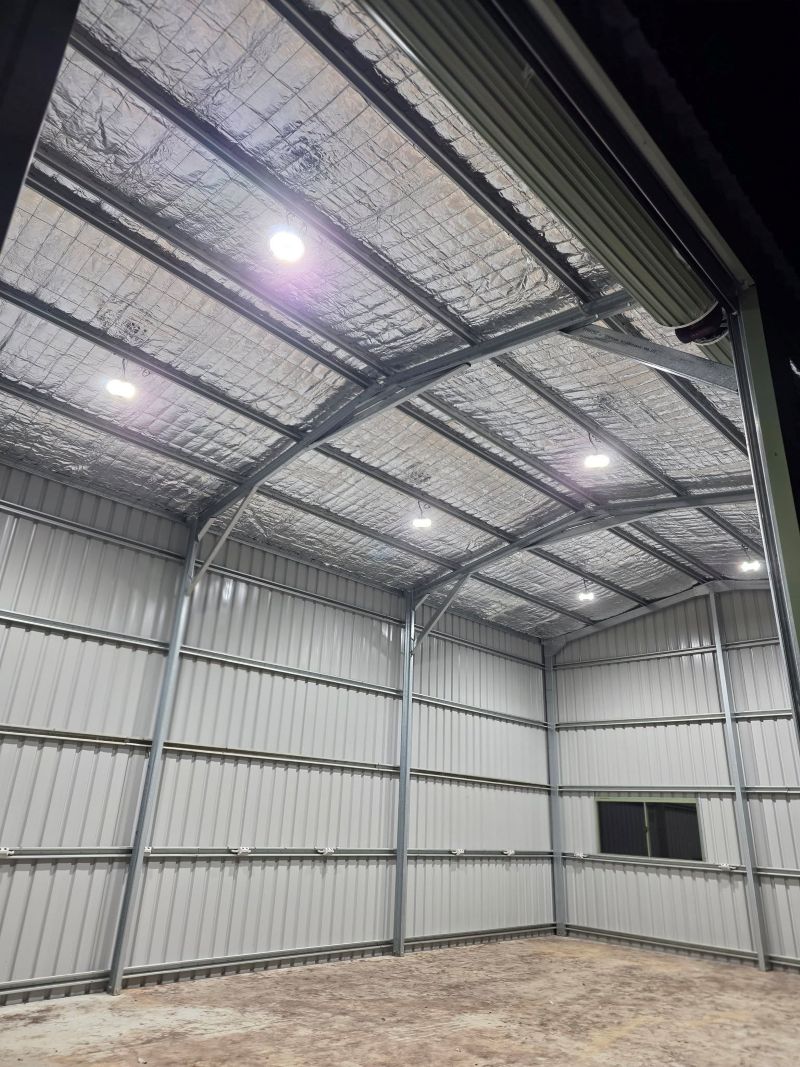

• Dedicated lighting — Provide brighter, targeted lighting over work areas, utilising LED high-bays for larger sheds to enhance visibility and safety.

For comprehensive guidance on establishing dedicated circuits for heavy tools, explore Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which delves into the specifics of effective wiring solutions.

Equipping a Comprehensive Workshop with Essential Three-Phase Power

If your activities involve heavy machinery such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying solely on single-phase power may not be sufficient. This is where Three-phase power becomes essential to meet your operational demands.

Three-phase power provides a more stable and higher-capacity power supply, allowing you to operate multiple heavy-duty machines simultaneously without compromising performance. Your electrician will need to:

• Organise a three-phase supply from your energy distributor (this process can take several weeks in the Mid North Coast area).
• Install a three-phase sub-board in your shed, complete with the necessary breakers and RCDs to ensure safety and compliance with regulations.
• Utilise heavier cabling — Remember that three-phase cable runs can be more expensive, especially over extended distances, so careful planning is essential.
• Set up three-phase outlets — These heavy-duty sockets are specifically rated for the equipment you plan to operate, providing the necessary power for effective functioning.

If you’re uncertain about whether you require three-phase power, read Do I Need Three-Phase Power on My Property? — this resource discusses when it is beneficial and when a properly configured single-phase system will suffice. We also offer complete three-phase switchboard installation if that aligns with your requirements.

Investing in Essential Surge Protection for Your Shed

Properties situated on the Mid North Coast frequently experience intense lightning storms. A direct or nearby strike can potentially damage everything within your shed, including tools, chargers, fridges, and any devices plugged in, leading to costly repairs.

Investing in a reliable surge protection device, installed within the sub-board, serves as inexpensive insurance against electrical surges. It absorbs voltage spikes before they can reach and damage your valuable equipment. For sheds housing expensive tools or workshop setups, this precaution is invaluable and could save you significant expenses in the long run.

If your property also utilises a generator for backup power, your electrician can install a generator changeover switch, ensuring that both the shed and the house can safely transition to generator power during outages, maintaining critical operations during emergencies.

What Are the Key Requirements for Council Approval and Compliance?

Here are several important considerations to keep in mind:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to save on labour costs, all electrical work — including cabling, connections, and sub-board installation — must be handled by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion to ensure compliance.
• Depth of underground cable must adhere to AS/NZS 3000 (the Wiring Rules), a standard your electrician will ensure compliance with during the installation process.
• If the shed is newly constructed, you may require development approval depending on your local council and the size of the shed. While the electrical work itself might not necessitate a separate permit, the overall construction may require one.

Hack-It Electrical Solutions proudly holds the NSW Electrical Contractor Licence #230609C. We provide a compliance certificate for every job we complete, ensuring peace of mind and adherence to local regulations.

Understanding the Financial Aspects of Shed Wiring on Acreage

Each shed presents unique challenges — including its distance from the house, whether you require single-phase or three-phase power, the number of circuits needed, and soil conditions impacting trenching. However, here’s a realistic cost guide for the Mid North Coast area:

• Basic shed wiring (lighting + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase power, dedicated circuits, and surge protection — Starting from $8,000+

Be mindful that longer cable runs (50m or more), rocky terrain requiring specialised equipment, or upgrades to three-phase supply will all potentially increase costs. The most effective method to obtain an accurate estimate is to have your electrician visit your property, assess the cable route, and gain a thorough understanding of your shed's intended use and specific requirements.

If you would like a straightforward quote tailored to your specific setup, do not hesitate to call us at 0402 079 803 or contact us here.

Addressing Frequently Asked Questions About Shed Wiring

Can I Wire My Shed Myself in NSW?

Absolutely not. All electrical work in NSW must be conducted by a licensed electrician. This includes tasks such as running cables to the shed, installing the sub-board, power points, lighting, and more. Engaging in DIY electrical work is illegal and poses significant dangers to both you and your property. Your electrician will issue a Certificate of Compliance once the work has been completed, ensuring everything meets the required standards for safety and functionality.

How Deep Must Underground Cable Be Buried to Ensure Safety?

According to the Australian Wiring Rules (AS/NZS 3000), underground cable installed in conduit should be buried a minimum of 500mm deep under normal conditions. If vehicles are expected to drive over the route, the cable must be buried deeper, typically around 600mm or more. Your electrician will determine the appropriate depth for your specific property circumstances, ensuring compliance with safety regulations and best practices.

Do I Need a Separate Meter for My Shed?

In most instances, the answer is no. The shed’s sub-board connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed serves as a standalone dwelling or commercial premises — this consideration involves discussions with both the council and your energy distributor to ensure compliance with local regulations and standards.

How Long Does It Typically Take to Wire a Shed on Acreage?

A basic shed wiring job, which includes trenching, cable installation, sub-board setup, lighting, and power points, typically takes between one to two days once the trench is prepared. If you're digging the trench yourself, your electrician can provide guidance on the precise route and depth before you begin. Keep in mind that three-phase jobs may take longer due to the need to arrange the supply connection with the distributor first, impacting the overall timeline.

Can I Run Power From the Shed to Other Buildings on My Property?

Yes, you can. However, each additional building will require its own appropriately rated cable run and may need its own sub-board depending on the load. Your electrician can design a comprehensive layout across multiple buildings to ensure that the cabling and switchboard capacity are adequate from the outset, rather than attempting to add components later and potentially creating issues with power distribution and safety.

Ensure Your Shed Wiring Is Professionally Managed for Optimal Safety

If you are located on acreage near Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere across the Mid North Coast, Hack-It Electrical Solutions is here to assist you in setting up your shed correctly — whether it involves a basic lighting and power setup or an extensive three-phase workshop installation tailored to your specific needs.

Give us a call at 0402 079 803 or reach out through our website to schedule a site visit. We will survey your property, determine the optimal cable route, and provide you with a straightforward quote that meets your requirements.
