French Drain Solutions in Shellharbour for Runoff Control

Resolving Water Ingress Challenges in Shellharbour

A homeowner in Shellharbour encountered a pressing and worsening problem with water ingress. Rainwater from two adjacent properties, positioned at a higher elevation, began to flow into the garden and seep beneath the foundation of the house. This unwanted intrusion caused damage to the flooring, encouraged rising damp, and resulted in mould growth within the property, jeopardising the integrity of recent renovations.

How Can You Detect the Source of Water Ingress?

The issue originated from both surface runoff and subsurface water flowing downhill from the back and side yards of neighbouring properties. In the absence of a robust drainage system to intercept this water, it was forced to flow beneath the house.

Developing an Effective Drainage Solution

CS Plumbing designed and installed a gravity-fed French drain system specifically aimed at capturing and redirecting water before it could reach the home’s foundation.

The project comprised several key components:

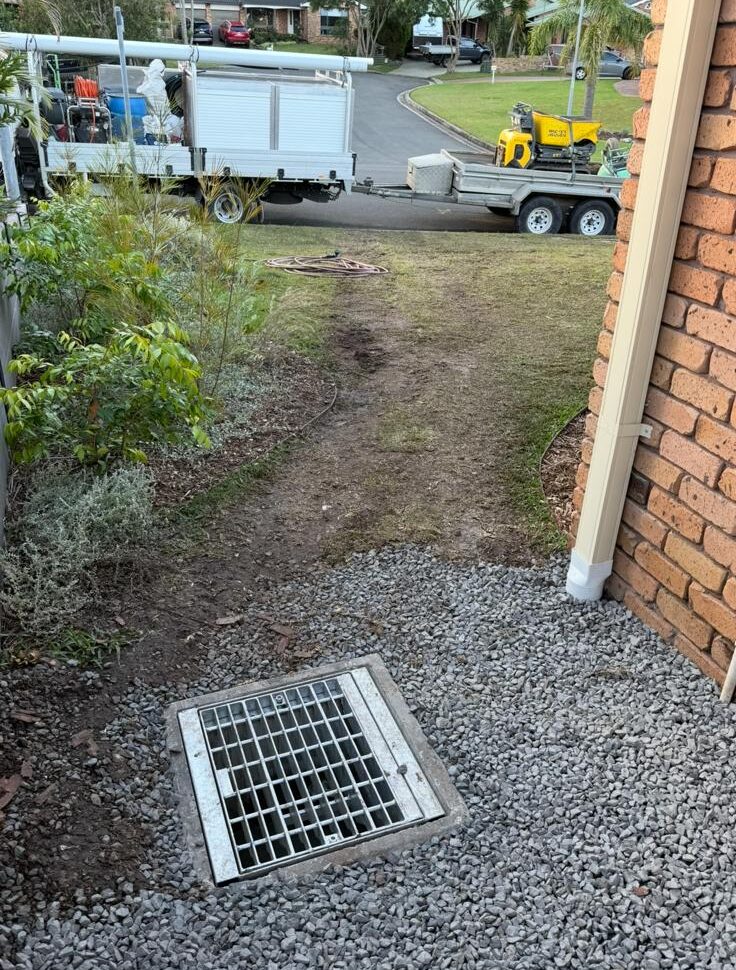

A French drain system meticulously crafted to collect both surface and subsurface water from adjacent properties, directing it through gravity to a concrete pit.
A 100mm PVC pipe extending from the pit to the kerb, with strategically drilled holes in the kerb to facilitate efficient water discharge.
Three new, larger-diameter Colorbond metal downpipes replacing the original smaller pipes, connected to new 100mm PVC piping leading to the kerb.
A retaining wall system constructed along the boundary, using concrete sleepers and galvanised steel posts, with auger holes drilled by an excavator to create a sturdy barrier that holds back the neighbouring yard.

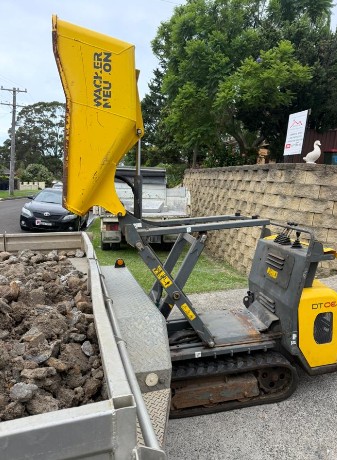

Efficient soil removal on-site, aided by a dumper for effective site management.

What Actions Can You Take for Efficient Water Management?

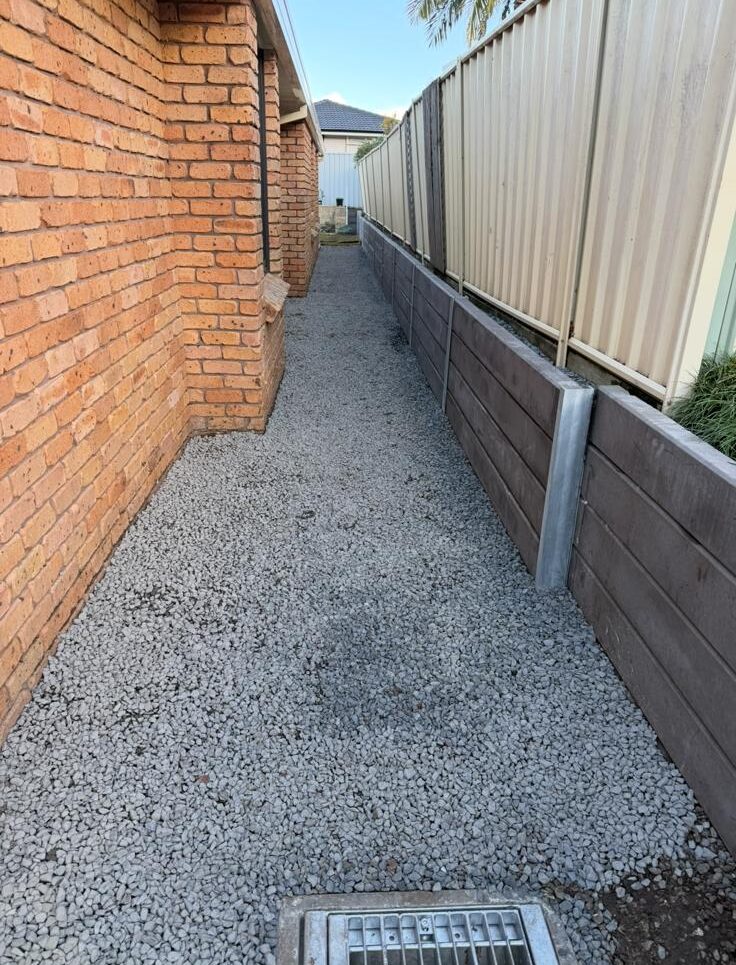

The newly implemented drainage system now effectively captures both surface and subsurface water at the property boundary, ensuring that it is diverted away from the home. This solution offers the homeowner a durable, low-maintenance option that protects their foundation, flooring, and the investment made in renovations.
