Concrete Floor Thickness for Car Hoist Installation

Key Factors to Consider When Installing a Car Hoist in Your Garage

If you are contemplating the installation of a car hoist in your garage, it is absolutely crucial to ensure that your concrete floor meets the necessary specifications. A sturdy and stable foundation is essential not only for the optimal functionality of the hoist but also for protecting your vehicles and anyone operating the equipment. By undertaking adequate preparation and strictly following installation guidelines, you can significantly improve both the performance and lifespan of your hoist, ensuring that your investment remains sound over time.

Most car hoists require a concrete slab that is a minimum of 100mm (4 inches) thick. This specific measurement is vital as it promotes the even distribution of weight from both the vehicle and the hoist, thereby minimising the risk of cracking or sinking as time progresses. For heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially extending up to 150mm (6 inches), to guarantee optimal performance and safety during operation.

Comprehensive Guide to Accurately Determining the Concrete Thickness Required for Your Car Hoist

The thickness of your concrete floor is a critical aspect of ensuring the safe installation and operation of a car hoist. Several factors must be meticulously considered when assessing the appropriate depth for your slab to ensure it can adequately support the loads it will encounter during use. Understanding these factors can help you avoid costly errors and significantly improve the safety of your garage setup.

Assessing Load Capacity for Your Car Hoist Installation

Car hoists impose considerable stress on the concrete floor beneath them. Therefore, it is vital to comprehend the total weight that your concrete floor must support. This consideration encompasses not only the weight of the vehicle but also the hoist's own weight, which can introduce a significant additional load to the floor.

A typical passenger vehicle weighs between 1,500 to 2,000 kg, while the car hoist may add an extra 500 to 1,000 kg. Moreover, it is prudent to factor in additional weight as a safety buffer to ensure that the structure can endure unforeseen circumstances without compromising safety.

For the majority of home garages, a concrete thickness between 100 mm and 150 mm is generally sufficient. However, if you plan to lift significantly heavier vehicles, it may be necessary to consider a thicker slab to ensure both safety and stability during operation.

Engaging with a structural engineer is a wise move, as they possess the expertise to offer personalised advice and assist you in determining the precise thickness required based on your individual circumstances and requirements.

Understanding Different Types of Car Hoists and Their Concrete Thickness Requirements

It is essential to recognise that various types of car hoists come with specific requirements concerning concrete thickness. Two-post lifts and four-post lifts are two of the most popular choices among homeowners looking to incorporate a car hoist into their garages.

Two-post lifts typically apply pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively manage the concentrated load.

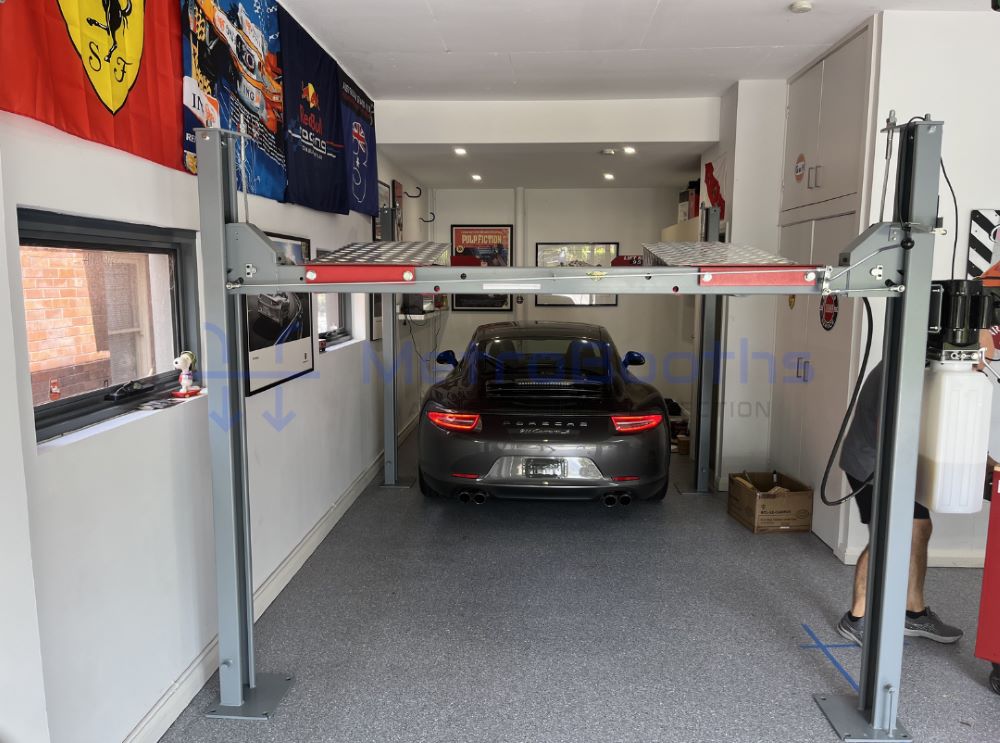

In contrast, four-post lifts distribute weight more evenly across a larger area, allowing them to function efficiently with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This knowledge significantly impacts your planning and installation process.

Always consult the manufacturer's specifications for the hoist you are considering, as they will usually specify the minimum concrete thickness required for safe operation. Adhering to these guidelines is crucial for ensuring optimal performance and longevity of your equipment.

Remember that these recommendations serve as general guidelines. Your specific requirements may differ based on your garage's configuration and the types of vehicles you intend to lift.

Recognising the Significance of Concrete Strength and Reinforcement Strategies

The strength of your concrete is as important as its thickness. Higher strength concrete can often be effectively employed at a thinner depth while still providing adequate support for substantial loads, particularly crucial in the context of a car hoist installation.

It is advisable to utilise concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry professionals recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting.

Incorporating reinforcement techniques is vital for significantly boosting the durability of your concrete. The addition of steel mesh or rebar can substantially enhance the overall strength of your concrete floor, potentially allowing you to utilise a thinner slab while still ensuring it effectively supports heavy loads during operation.

For most home garages, SL82 mesh presents a reliable option. It provides adequate strength for the majority of car hoists without incurring excessive costs, which is an important consideration for budget-conscious homeowners.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This inclusion can help mitigate the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation.

Critical Installation Factors for Ensuring Reliable Car Hoist Functionality

When it comes to the installation of a car hoist, meticulous site preparation and ongoing floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper floor upkeep, you can secure the safe and prolonged operation of your hoist, ultimately protecting your investment.

Essential Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before proceeding with the installation of your car hoist, it is essential to confirm that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and composed of 3000 PSI concrete. Additionally, the slab must be perfectly level and free from any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is imperative to use steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Moreover, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, enlisting a professional who can accurately assess its condition is highly advisable.

Vital Ongoing Maintenance for Your Car Hoist Following Installation

Once your car hoist is installed, it is crucial to routinely monitor the condition of the concrete surrounding it. Be vigilant for any cracks, chips, or signs of stress, addressing any issues promptly to prevent larger complications that could jeopardise the hoist's functionality.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, employing protective mats under the lift arms can help minimise wear and tear on the floor, thereby extending its lifespan.

Regularly checking the tightness of the anchor bolts is also imperative, as loose bolts can damage the concrete and render the hoist unsafe for operational use. This straightforward maintenance task can prevent costly repairs and ensure safe usage.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly elongate the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment.

Frequently Asked Questions Regarding Car Hoist Installation and Concrete Specifications

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some commonly asked questions related to the concrete requirements for various types of lifts.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may require thicker slabs for safe operation.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist requires a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free from any cracks to ensure effective and safe operation. It is advisable to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, giving you peace of mind.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, adding a new layer of concrete may be necessary to achieve the appropriate depth for safe operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcements employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency.
